Curved lighting design has become increasingly common in signage, architecture, and interior projects. However, standard straight LED strips are not optimized for non-linear installation paths, often leading to uneven illumination, excessive connectors, or mechanical stress at bend points.
S-shape LED strips are designed to address this limitation through a zig-zag PCB structure that improves lateral flexibility and reduces stress concentration during installation. Unlike marketing descriptions, their real value lies in mechanical behavior under curved installation conditions.
This article explains how S-shape LED strips perform in real installations, where they should be used, and what technical limitations must be considered.
Table of Contents
Structural Principle: Why S-Shape PCB Works Differently

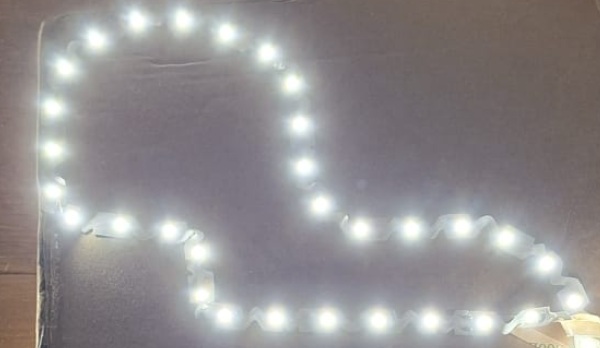

An S-shape LED strip is built on a zig-zag printed circuit board (PCB) rather than a straight linear layout.
This structure changes how bending forces are distributed:
- Straight strips concentrate stress along a single axis
- S-shape layout disperses stress across alternating PCB segments
- Copper traces experience lower localized fatigue
As a result, the strip maintains more stable electrical continuity under curved installation conditions.
👉 Important clarification:
S-shape design does not increase flexibility infinitely; it changes stress distribution, not bending physics.
Real Engineering Advantage
In real installations, S-shape LED strips mainly solve three practical issues:
Reduced Joint Dependency
Traditional curved installations often require:
- cutting strips
- soldering wires
- adding connectors
S-shape strips reduce the number of electrical joints required along curved paths.
More Stable LED Spacing on Curves
When a straight strip bends:
- LED spacing visually compresses on inner radius
- spacing expands on outer radius
S-shape layout reduces this distortion, resulting in more uniform light distribution.
Lower Mechanical Failure Rate in Repeated Curves
Applications like signage maintenance or modular installations may involve repeated handling.
S-shape PCB reduces:
- solder joint cracking
- trace fatigue at fixed bend points
Typical Applications
Channel Letter Signage
Used in curved or compact letter shapes where continuous illumination is required without visible dark joints.
Key benefit: fewer solder points inside enclosed letters.
Architectural Cove Lighting
Applied in ceiling coves or wall transitions where geometry is not strictly linear.
Key benefit: smoother visual continuity across curves.
Furniture Lighting Integration
Used in curved furniture structures such as:
- display counters
- bar counters
- custom shelving
Key benefit: reduced need for segmented strip assembly.
Custom Fabrication Projects
Common in exhibition lighting and prototype installations where geometry is irregular.
Technical Limitations
S-shape LED strips are often misunderstood. The following limitations are important:
Minimum Bend Radius Still Applies
Even with zig-zag PCB design:
- over-bending can still damage copper traces
- mechanical limits are defined by PCB material, not shape alone
Not Suitable for Extreme 3D Twisting
S-shape strips are designed for planar curvature, not:
- spiral twisting
- multi-axis deformation
Heat Dissipation Still Depends on Installation
Performance depends on:
- aluminum channel usage
- ambient temperature
- LED density
Selection Parameters
When choosing S-shape LED strips, focus on:
Voltage System
- 12V: shorter runs, finer control
- 24V: longer runs, lower voltage drop
LED Density
Higher density improves:
- curve smoothness
- hotspot reduction
PCB Width
Narrower strips:
- fit tighter channels
- but may reduce heat dissipation area
IP Rating
Required for outdoor or humid environments:
- IP20: indoor only
- IP65–IP67: moisture protection
Installation Guidelines
To ensure stable performance:
- avoid sharp angle folding at a single point
- follow recommended bend radius consistently
- mount using aluminum profiles when possible
- test sections before final fixing
- inject power for long runs to avoid voltage drop
👉 Installation quality directly affects lifespan more than strip type.
S-Shape vs Standard LED Strip
|
Factor |
Standard Strip |
S-Shape Strip |
|
Curved installation |
Requires joints |
Continuous layout |
|
Stress distribution |
Concentrated |
Distributed |
|
Installation speed |
Slower |
Faster |
|
Cost |
Lower |
Higher |
|
Best use case |
Straight runs |
Curved geometry |
FAQ
1. Can S-shape LED strips bend in both directions?
S-shape LED strips are designed for lateral bending and curved paths. However, they still have a minimum bend radius and should not be over-bent.
2. Are S-shape LED strips better than standard LED strips?
They are better for curved installations because they reduce the need for cutting and soldering. For straight runs, standard LED strips are usually more cost-effective.
3. Where are S-shape LED strips commonly used?
They are widely used in channel letter signage, architectural cove lighting, curved furniture, and custom decorative lighting.
4. Do S-shape LED strips last as long as normal LED strips?
Yes, if installed within the recommended bend radius and with proper heat management.
5. Can S-shape LED strips be used outdoors?
Yes, but only if the strip has an appropriate waterproof rating such as IP65 or above.
Conclusion
S-shape LED strips are not a “brighter” or “more efficient” lighting solution. Their real engineering value is in mechanical adaptability for curved installations.
They reduce the need for soldered joints, improve installation consistency on curved surfaces, and provide more stable lighting distribution in non-linear architectural and signage applications.
However, their performance still depends on proper installation design, bend radius control, and thermal management.
