Ideal Applications of Wall Washer LED Strip Lights
Wall washer LED strip lights, also known as flexible LED wall washers or architectural wall washer lights, are designed to provide uniform surface illumination for indoor and outdoor architectural projects. With concentrated beam angles and flexible installation capability, they are widely used for highlighting structures, enhancing textures, and creating professional lighting effects.
1. Building Facade Lighting
LED wall washer strips are widely used for building facade lighting and exterior architectural illumination. They help highlight structural details, textures, and outlines with smooth and even light distribution, making commercial buildings, hotels, bridges, and landmarks more visually attractive at night.
2. Indoor Feature Walls
For interior spaces, wall washer LED lighting is ideal for illuminating feature walls, textured surfaces, and decorative architectural elements. It creates visual depth and premium ambient lighting in hotels, retail stores, showrooms, offices, and residential projects.
3. Landscape and Outdoor Lighting
With waterproof options such as IP65 and IP67, flexible wall washer lights are suitable for landscape lighting and outdoor architectural applications. They can be used to illuminate gardens, pathways, outdoor walls, and public spaces while maintaining stable performance in harsh weather conditions.
4. Architectural Projects
Designed for professional lighting applications, LED wall washer strips are commonly used in architectural lighting projects requiring precise beam control and uniform illumination. Their flexible structure makes them suitable for both straight and curved installations, offering greater design freedom compared to traditional rigid wall washers.

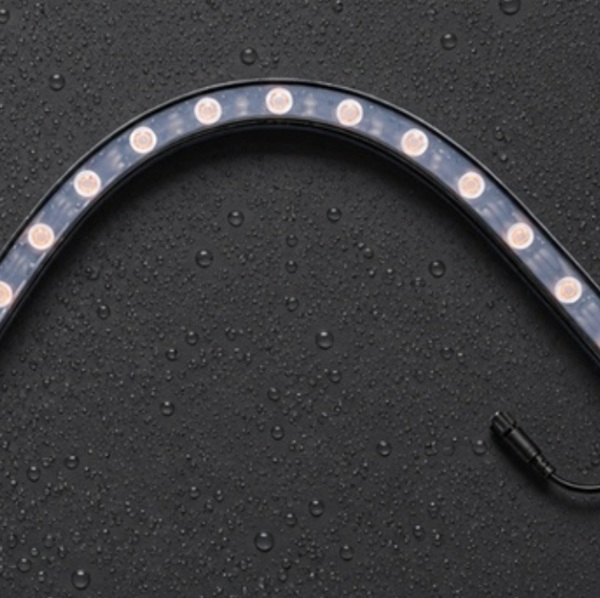

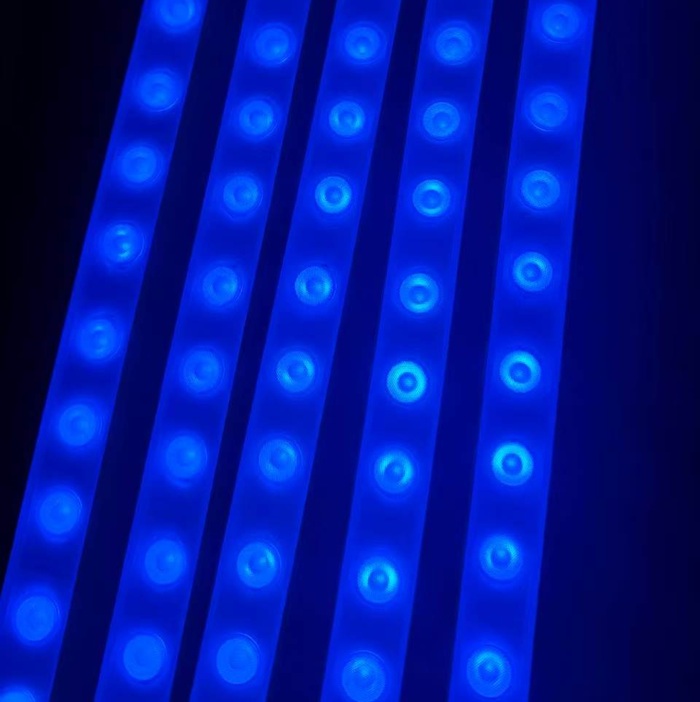

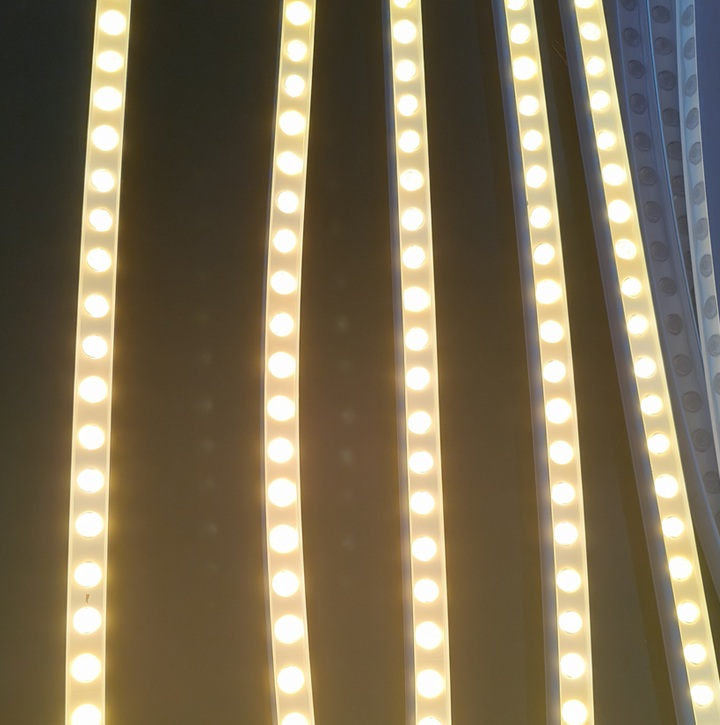

YIHOLIGHT 3D Bendable LED Wall Washer Series is designed for architectural and landscape applications that require both flexible installation and controlled wall-washing performance. Its flexible silicone structure adapts to curved, irregular, and three-dimensional surfaces, while multiple beam angle options provide precise light distribution for different project requirements.
Available in different profile sizes, power levels, colors, and control options, the series can be customized for building facades, curved walls, landscape features, commercial spaces, architectural contours, and other creative lighting installations.
3D Flexible Bending
Designed to follow curved, irregular, and complex architectural structures, providing greater installation freedom than conventional rigid wall washers.
Multiple Optical Options
Various narrow, wide, and asymmetric beam angles are available to achieve different wall-washing distances, coverage, and lighting effects.
High-Performance Architectural Lighting
Different profile and power options provide solutions ranging from compact decorative lighting to high-output facade illumination.
Outdoor & Custom Project Ready
Durable silicone construction, high IP protection, and customizable power, CCT, beam angle, control, cable, and installation accessories support a wide range of architectural projects.
| Part No. | CCT | Beam angle | IC Model | CRI | Voltage | Power | Lumens | Waterproof | Cut Size |
|---|---|---|---|---|---|---|---|---|---|
| YH-WW2527V24-WX | 3000/4000/5000K | 25°/35°/20*35°/ 20*55° | / | 90 | 24V | 24w/m | 1750lm/m | IP65 | 125mm |
| YH-WW2527V24-TW | Tunable white | 25°/35°/20*35°/ 20*55° | / | 90 | 24V | 24w/m | / | IP65 | 125mm |
| YH-WWDM2527V24-TW | DMX tunable white | 25°/35°/20*35°/ 20*55° | UCS512H4 | 90 | 24V | 24w/m | 1330 | IP65 | 125mm |
| WWDM2527V24-RGBW | DMX RGBW | 25°/35°/20*35°/ 20*55° | UCS512H4 | 90 | 24V | 24w/m | 1130 | IP65 | 125mm |
| YH-WW2020V24-WX | 3000/4000/ 5000 | 15°/35° | / | 90 | 24V | 18w/m | 1550lm/m | IP65 | 125mm |
| YH-WWDM2020V24-TW | DMX tunable white | 15°/35° | UCS512HE | 90 | 24V | 18w/m | 950lm/m | IP65 | 125mm |
| YH-WWDM2020V24-RGBW | DMX RGBW | 15°/35° | UCS512HE | 90 | 24V | 18w/m | 740lm/m | IP65 | 250mm |
| YH-WW2222V24-WX | 2700/3000/ 4000/6000 | 20°/30°/45°/60° 20°*30°,30°*50° 20°*50°,10°*60° | / | 90 | 24V | 24w/m | 2260lm/m | IP65 | 40mm |
| YH-WW2222V24-RGBW | RGBW | 30°/45°/60° 30°*35° | / | / | 24V | 24w/m | 720lm/m | IP65 | 80mm |
| YH-WWDM2222V24-RGBW | DMX RGBW | 30°/45°/60° 30°*50° | UCSH6L | / | 24V | 24w/m | 720lm/m | IP65 | 80mm |
| YH-WW3525V24-WX | 2700/3000/ 4000/6000 | 15°/30°/45°/60° 24°*45°,20°*60° 15°*30° | / | 90 | 24V | 48w/m | 2520lm/m | IP65 | 80mm |

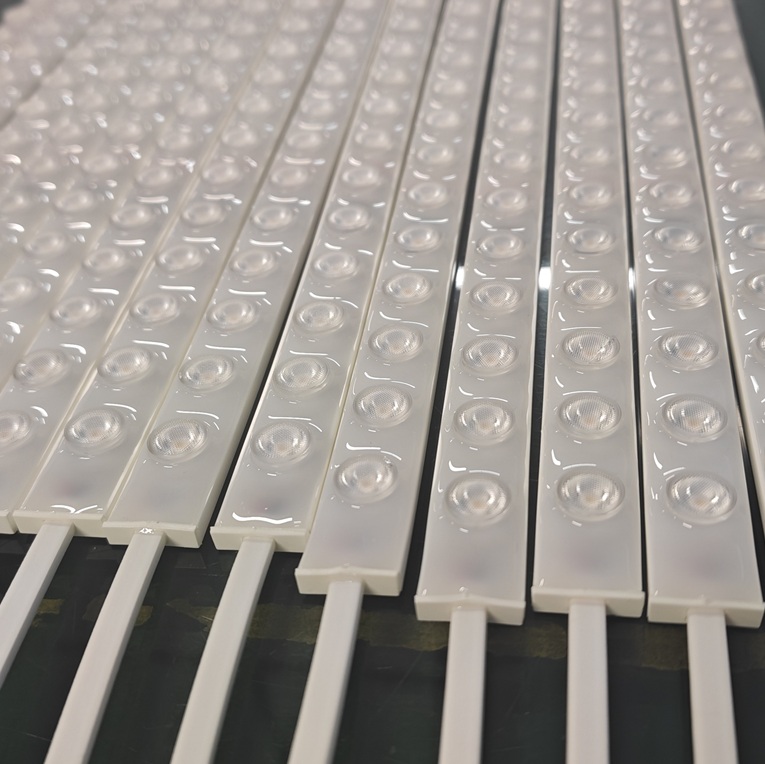

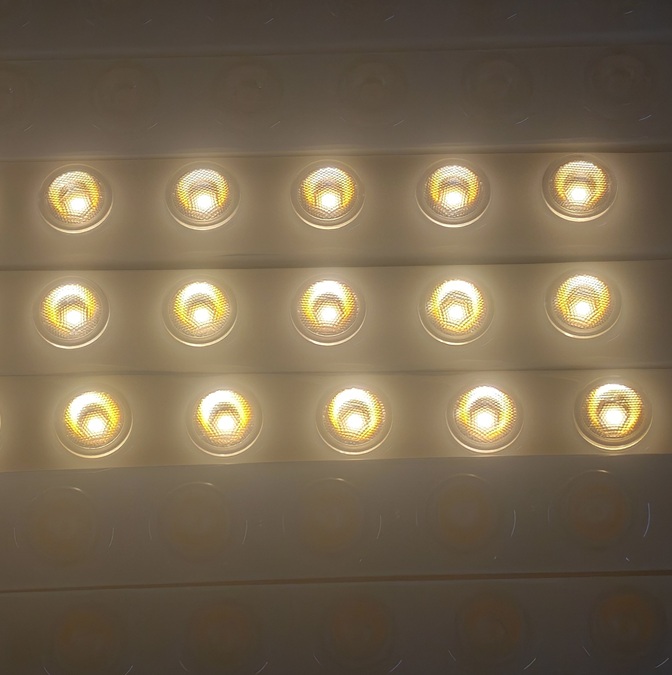

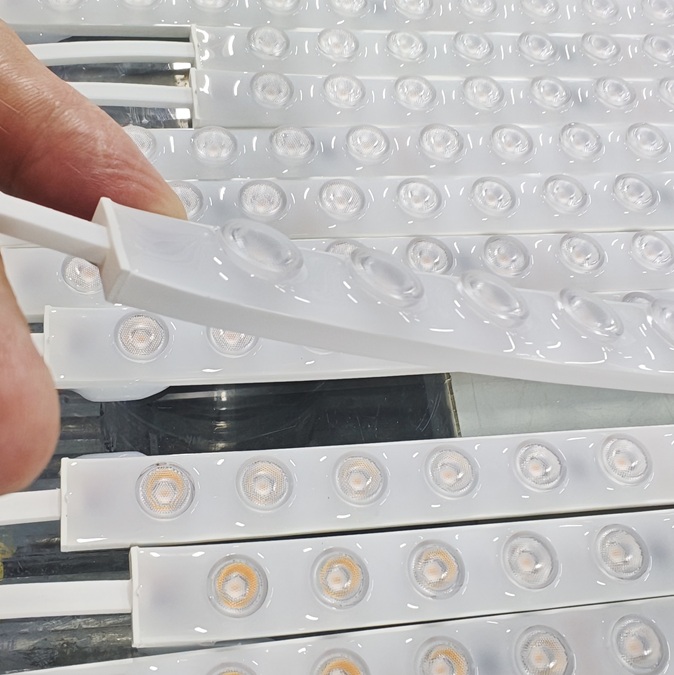

Yiholight’s s PU Wall Washer LED strips are flexible LED strips encased in polyurethane (PU) material, designed to provide even, uniform light distribution for architectural and decorative lighting applications. These strips are specifically built for wall washing, meaning they are designed to wash a surface with smooth, consistent light, highlighting textures and details without harsh shadows or visible hotspots.
They are featured by:
Enhanced Durability with PU Coating
One of the standout features is their highly durable polyurethane (PU) casing. Unlike silicone or PVC, PU offers superior resistance to UV, extreme temperatures, and outdoor elements, making these strips ideal for both indoor and outdoor applications. PU provides better protection against environmental wear and tear, especially for long-term outdoor use.
Uniform Light Distribution
Designed specifically to provide smooth, even lighting across surfaces, eliminating the uneven lighting effects or visible hotspots that may occur with traditional LED strips. They create a gentle wash of light that enhances the visual aesthetics of any space.
Weatherproof and Waterproof (IP Rated Versions)
For outdoor applications, many PU wall washer LED strips come with IP67 ratings, ensuring that they are weatherproof and waterproof. This makes them perfect for illumination in harsh conditions, such as rain, snow, or high humidity, without compromising their performance or lifespan.
| Part No. | CCT | Beam angle | CRI | Voltage | Power | Lumens | Waterproof | Cut Size |
|---|---|---|---|---|---|---|---|---|
| YH-WW1810V24-WX | 2700-6000K | 30°/45°/60°/20*45° | 90 | 24V | 18w/m | 1915lm/m | IP67 | 125mm |
| YH-WW1810V24-WX | 2700-6000K | Asymmetric 115x50° | 90 | 24V | 18w/m | 1564lm/m | IP67 | 125mm |
| YH-WW1810V24-RGB | RGB | 40°/30x45° | / | 24V | 6.2w/m | 264lm/m | IP67 | 166.6mm |
| YH-WW1810V24-RGBW | RGB+3000/ 4000/5000k | 40°/30x45° | / | 24V | 8w/m | 540lm/m | IP67 | 166.6mm |
| YH-WWDM1810V24-RGB | RGB | 40°/30x45° | / | 24V | 8.5w/m | 230lm/m | IP67 | 166.6mm |
| YH-WWDM1810V24-RGBW | RGB+3000/ 4000/5000k | 40°/30x45° | / | 24V | 11.5w/m | 700lm/m | IP67 | 166.6mm |
How To Choose the Right LED Strip?
This guide helps you quickly identify the most suitable LED strip based on your project requirements, application environment, and lighting goals.
For cost sensitive projects –> Eco LED Strip
For general lighting –> Classic LED Strip
For energy-saving projects –> High Efficiency LED Strip
For adjustable white lighting environments –> SMD Tunable White LED Strip
For long continuous installations –> Long Run LED Strip
For smooth and dot-free lighting effect –> High Density LED Strip
For dynamic and programmable lighting effects –> Digital RGB / RGBW LED Strip
For decorative and colorful lighting –> RGB / RGBW LED Strip
For high-temperature environments → Sauna LED Strip
For flexible and curved installations → S-Shape LED Strip
For architectural wall lighting → LED wall washer
For dot-free premium lighting applications –> COB LED Strip
For premium adjustable white seamless lighting –> CCT Tunable COB LED Strip
FAQ
Q1: What is a wall washer LED strip?
It provides uniform lighting across surfaces.
Q2: Where is it used?
Commonly used for building facades and architectural lighting.
Q3: Can it be used outdoors?
Yes, outdoor versions are available.
Q4: Do you support customization?
Yes, OEM and ODM services are available.
