LED Track Light
5-year Warranty, CRI≥90
Contents

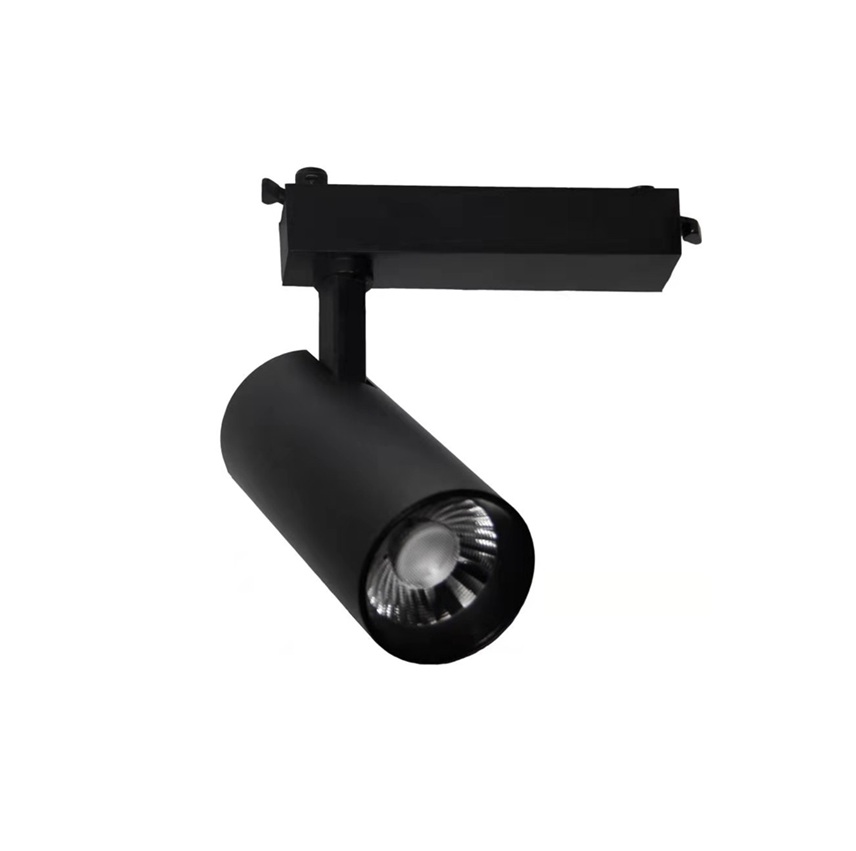

LED Track Light--3 Phase Installation
Yiholight’s LUMA series downlights fit for residential spaces like bedroom to provide soft ambient lighting, commercial buildings like retail stores to make inviting atmosphere, hospitality areas like hotels to offer comfortable and energy-efficient lighting that aligns with guest expectations, healthcare facilities like hospitals to support patient comfort in waiting areas, educational institutions like lecture halls to reduce eye strain in long teaching.
They are featured by:
- Energy Efficiency: With a lifespan of 25,000–50,000 hours, they reduce replacement frequency and maintenance costs significantly.
- Uniform Illumination: emit a wide, diffused beam that provides consistent ambient lighting, eliminating harsh shadows and creating a balanced brightness across rooms.
- Space-Saving Design: Most LED downlights are recessed into ceilings, offering a sleek, low-profile look that blends seamlessly with architectural decor, ideal for spaces where a minimalist aesthetic is desired.
- Eco-Friendly: Free from harmful substances like mercury, LED downlights produce no UV or infrared radiation, aligning with green building standards and reducing environmental impact.
- Dimmable & Versatile: Many models are compatible with dimmers, allowing users to adjust brightness for different moods or tasks. They also come in various color temperatures to suit warm or cool lighting needs.
| Part No. | TLR40 |
|---|---|
| Installation | 3 Phase |
| Size | ø40*H110mm |
| Power | 7W/9W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
| Part No. | TLR50 |
|---|---|
| Installation | 3 Phase |
| Size | ø50*H120mm |
| Power | 9W/12W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
| Part No. | TLR60 |
|---|---|
| Installation | 3 Phase |
| Size | ø60*H130mm |
| Power | 12W/15W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
| Part No. | TLR60 |
|---|---|
| Installation | 3 Phase |
| Size | ø60*H135mm |
| Power | 30W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |

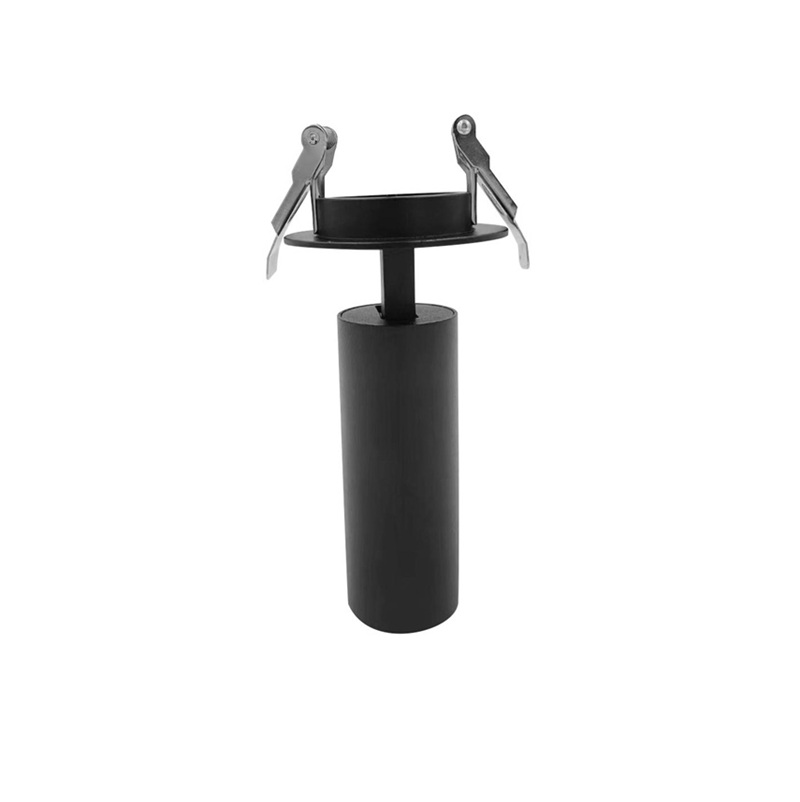

LED Track Light--Recessed Installation
Yiholight’s recessed LED Track Lights work well for retail stores like boutiques to highlight merchandise on display counters, art galleries to preservce the integrity of colors and details, car dealerships to show products in the best light, and modern offices to provide task lighting over workstations.
They are featured by:
- Energy Efficiency: Recessed LED track lights consume significantly less energy than traditional track lighting options, with up to 70% energy savings.
- Flexible Illumination: The track system allows easy adjustment of light fixtures—rotating, tilting, or sliding to direct light precisely. This adaptability makes them ideal for highlighting dynamic focal points.
- Space-Saving & Aesthetic: Recessed into ceilings, they offer a streamlined, unobtrusive look that integrates seamlessly with architectural designs, perfect for spaces aiming for a clean, modern aesthetic.
- High Luminance & CRI: Delivering strong, focused light with high color rendering index (≥90), they accurately showcase colors and details of illuminated objects.
- Dimmable & Compatible: Many models work with dimmers, enabling brightness control to set desired moods. They also fit standard track systems, ensuring easy installation and compatibility with existing setups.
| Part No. | TLR40-R |
|---|---|
| Installation | Recessed |
| Size | ø40*H110mm |
| Power | 7W/9W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 8°/15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
| Part No. | TLR50-R |
|---|---|
| Installation | Recessed |
| Size | ø50*H120mm |
| Power | 9W/12W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 8°/15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |

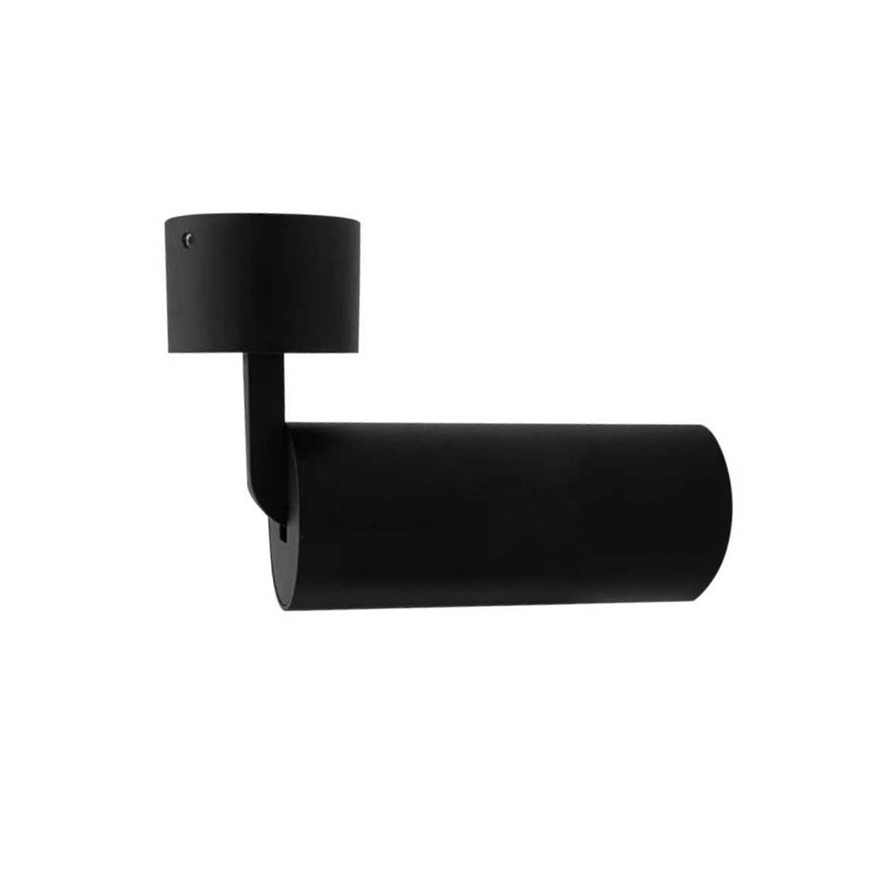

LED Track Light--Surface Mounted Installation
Yiholight’s surface mounted LED Track Lights are intended for retail environments like supermarkets to enhance product visibility and attract customers’ attention, commercial spaces like reception areas to provide accent light for brand logos, cafes to illuminate dining tables, modern homes especially open-concept living room to highlight bookshelves.
They are featured by:
- Easy Installation & Versatility: simple to install on various ceiling types (drywall, suspended, or concrete) without complex recessed work. The track system allows quick repositioning or addition of fixtures, adapting to changing lighting needs.
- Energy Efficiency & Longevity: With low power consumption (up to 75% energy savings vs. traditional track lights) and a lifespan of up to 50,000 hours, they reduce operational costs and minimize maintenance efforts.
- Flexible Beam Control: Fixtures on the track can be rotated, tilted, or swiveled to direct light precisely, making them ideal for highlighting specific areas or objects with focused illumination.
- High Performance: Delivering bright, consistent light with a high color rendering index (CRI ≥90), they accurately reproduce colors, ensuring displayed items or spaces look vivid and true to life.
- Aesthetic Compatibility: Their ceiling-mounted design adds a modern, industrial touch while remaining unobtrusive, complementing diverse interior styles from contemporary to minimalist.
| Part No. | TLR40-S |
|---|---|
| Installation | Surface Mounted |
| Size | ø40*H110mm |
| Power | 7W/9W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
| Part No. | TLR50-S |
|---|---|
| Installation | Surface Mounted |
| Size | ø50*H120mm |
| Power | 9W/12W |
| Input Voltage | 220-240VAC |
| CRI | ＞90 |
| Chip | Bridgelux |
| Light source SDCM | ＜3 |
| Beam angle | 15°/24°/36° |
| CCT | 3000K/4000K |
| Color | White/Black |
| Power supply | Eaglerise |
