LED Downlight--LUMA Series

Yiholight’s LUMA series downlights fit for residential spaces like bedroom to provide soft ambient lighting, commercial buildings like retail stores to make inviting atmosphere, hospitality areas like hotels to offer comfortable and energy-efficient lighting that aligns with guest expectations, healthcare facilities like hospitals to support patient comfort in waiting areas, educational institutions like lecture halls to reduce eye strain in long teaching.

They are featured by:

Energy Efficiency: With a lifespan of 25,000–50,000 hours, they reduce replacement frequency and maintenance costs significantly.

Uniform Illumination: emit a wide, diffused beam that provides consistent ambient lighting, eliminating harsh shadows and creating a balanced brightness across rooms.

Space-Saving Design: Most LED downlights are recessed into ceilings, offering a sleek, low-profile look that blends seamlessly with architectural decor, ideal for spaces where a minimalist aesthetic is desired.

Eco-Friendly: Free from harmful substances like mercury, LED downlights produce no UV or infrared radiation, aligning with green building standards and reducing environmental impact.

Dimmable & Versatile: Many models are compatible with dimmers, allowing users to adjust brightness for different moods or tasks. They also come in various color temperatures to suit warm or cool lighting needs.

Part No.	LUMA55T
Installation	Tilt Recessed
Cut out size	φ55mm
Size	Φ65*H79mm
Power	5W/7W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

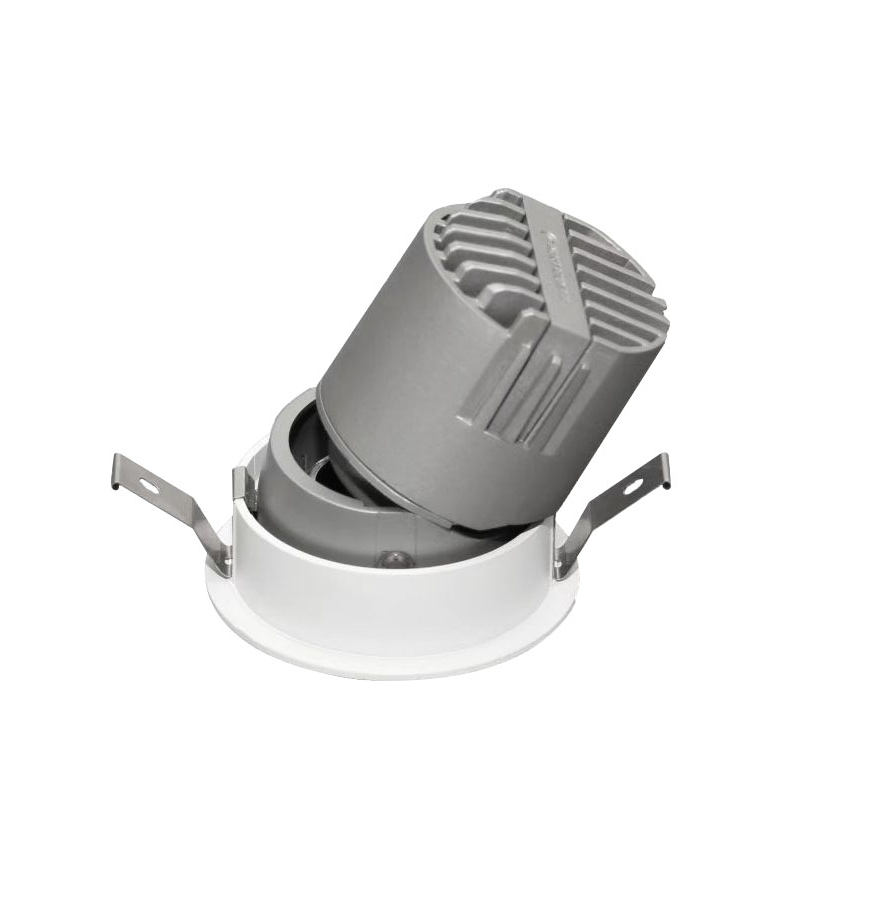

Part No.	LUMA75T
Installation	Tilt Recessed
Cut out size	φ75mm
Size	Φ85*H90mm
Power	7W/9W/12W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

Part No.	LUMA55TR
Installation	Trimless Tilt Recessed
Cut out size	φ55mm
Size	Φ11055H79mm
Power	5W/7W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

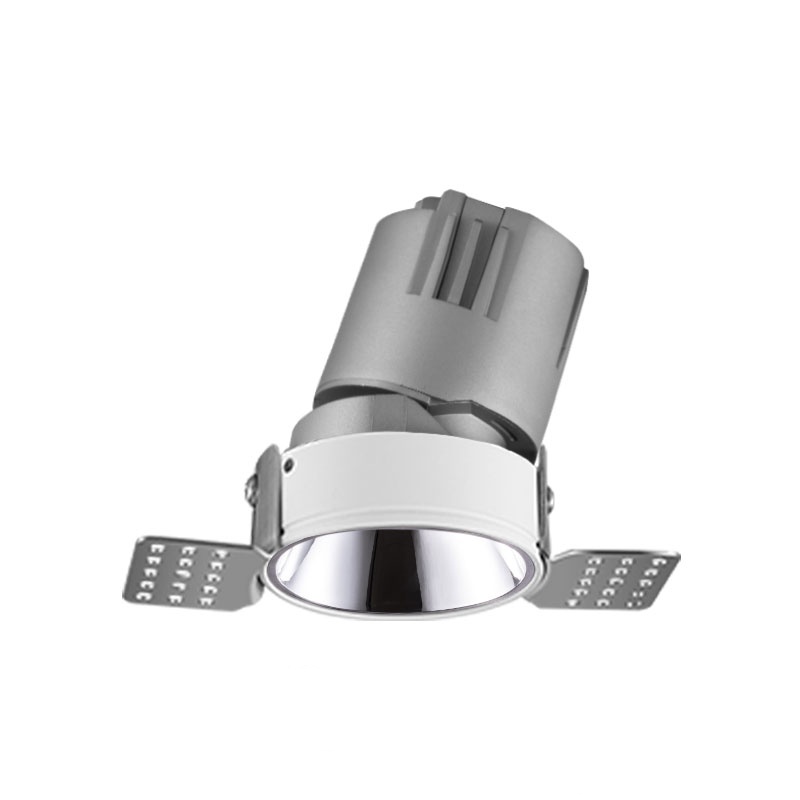

Part No.	LUMA75TR
Installation	Trimless Tilt Recessed
Cut out size	φ75mm
Size	Φ12075H90mm
Power	7W/9W/12W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

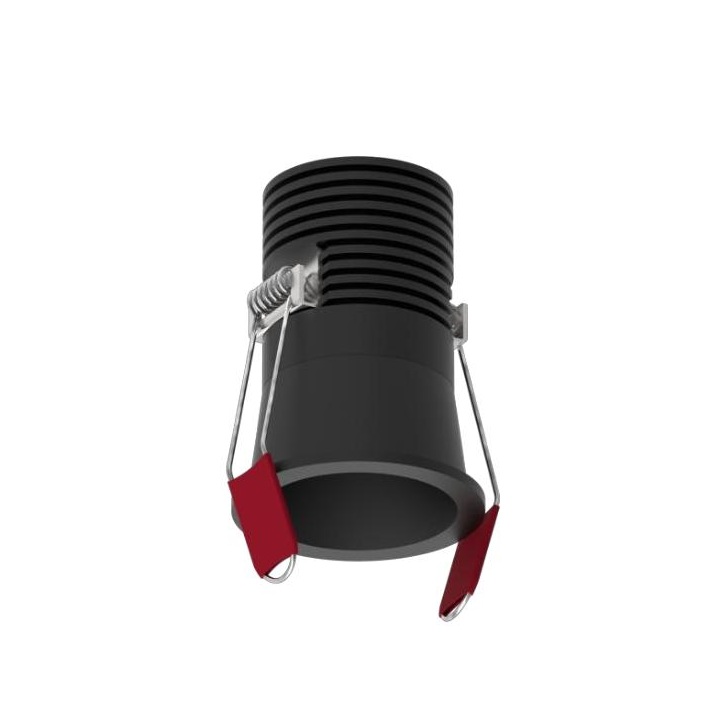

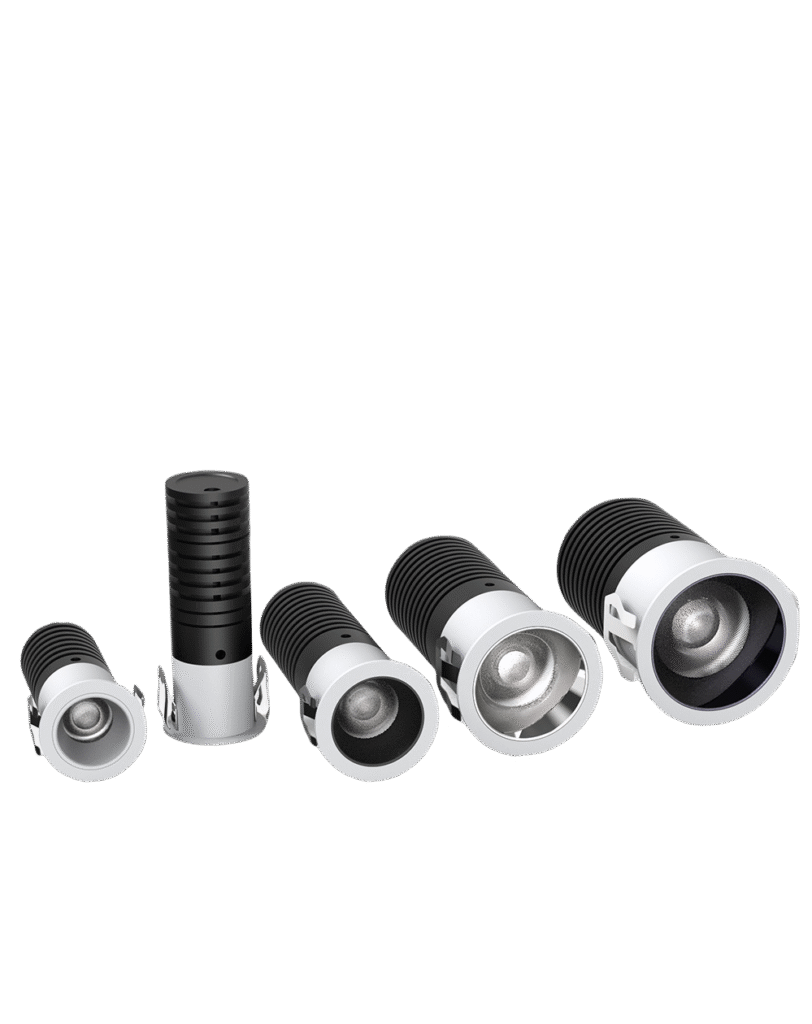

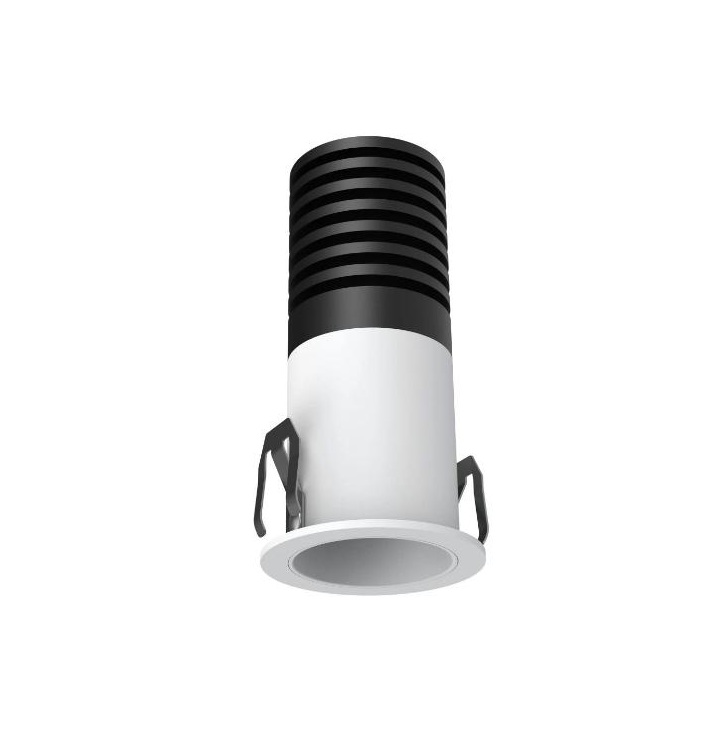

LED Downlight--SPARK Series

Yiholight’s SPARK series are mostly used in retail and exhibition like boutiques and jewelry stores to accentuate products, residential spaces like kiches as task lighting over countertops and living room to highlight bookshelves, commercial venues like restaurants to hightlight dining tables and showrooms to show furnitures, office&hospitality like meeting rooms to focus on whiteboards and reception areas to highlight brand logos.

They are featured by:

Precise Illumination: Feature focused light beams with adjustable angles, allowing targeted highlighting of specific objects or areas without wasting light.
Energy Efficiency: Consume significantly less power than traditional halogen spotlights (up to 80% energy savings) and boast a long lifespan, reducing maintenance needs.
High Color Rendering: Many models offer high CRI (≥80, even ≥90 for premium versions), accurately restoring the true colors of illuminated objects—critical for showcasing details.
Compact & Versatile: Sleek, small-sized design enables flexible installation (surface-mounted, recessed, track-mounted) to fit various spaces without disrupting aesthetics.
Instant Start & Dimmable: No warm-up time, and compatible with dimmers (when specified), allowing easy adjustment of brightness to set desired atmospheres.

Part No.	SPARK35
Installation	Recessed
Cut out size	φ35mm
Size	Φ38*57mm, Φ38x80mm, Φ38x99mm
Power	5W/7W/9W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

Part No.	SPARK40
Installation	Recessed
Cut out size	φ40mm
Size	Φ45x68mm, Φ45x90mm, Φ45x116mm
Power	7W/9W/12W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

Part No.	SPARK50
Installation	Recessed
Cut out size	φ50mm
Size	Φ55x73mm, Φ55x96mm, Φ55x121mm
Power	7W/12W/15W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

Part No.	SPARK35-PRO
Installation	Recessed
Cut out size	φ35mm
Size	Φ40x59mm
Power	3W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

Part No.	SPARK55-PRO
Installation	Recessed
Cut out size	φ55mm
Size	Φ60x83mm
Power	7W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

Part No.	SPARK65-PRO
Installation	Recessed
Cut out size	φ65mm
Size	Φ60x83mm
Power	10W
CRI	92
Chip	Bridgelux
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, gunmetaL black, white, black
Color	White/Black
Power supply	Eaglerise

LED Downlight--EZENTIAL Series

Yiholight’s EZENTIAL downlights are perfect for office spaces like meeting rooms and offices, commercial areas like shelving zone and hotel lobbies, public spaces like school classrooms and libraries, home auxiliary lighting like living rooms and studies.

They are featured by:

Energy Efficiency: They reduce energy consumption by over 50%. With a lifespan of 25,000 to 50,000 hours, it can minimize replacement frequency and maintenance costs.
Uniform Illumination: The grille structure, combined with high-quality LED beads, ensures excellent light diffusion, free of obvious light spots or shadows. This high uniformity enhances lighting comfort in spaces.
Eco-Friendly & Low-Impact: Free of harmful substances like mercury, they emit no ultraviolet or infrared radiation, meeting environmental standards. They also start without flicker, offering better eye protection.
Flexible Installation: Mostly designed for recessed or ceiling-mounted use, they fit ceiling keel structures and can be installed individually or in combinations, adapting to different space sizes.
Effective Heat Dissipation: Most models feature aluminum casings or grille-based heat dissipation structures, efficiently releasing heat to extend the light source’s lifespan and ensure long-term stable operation.

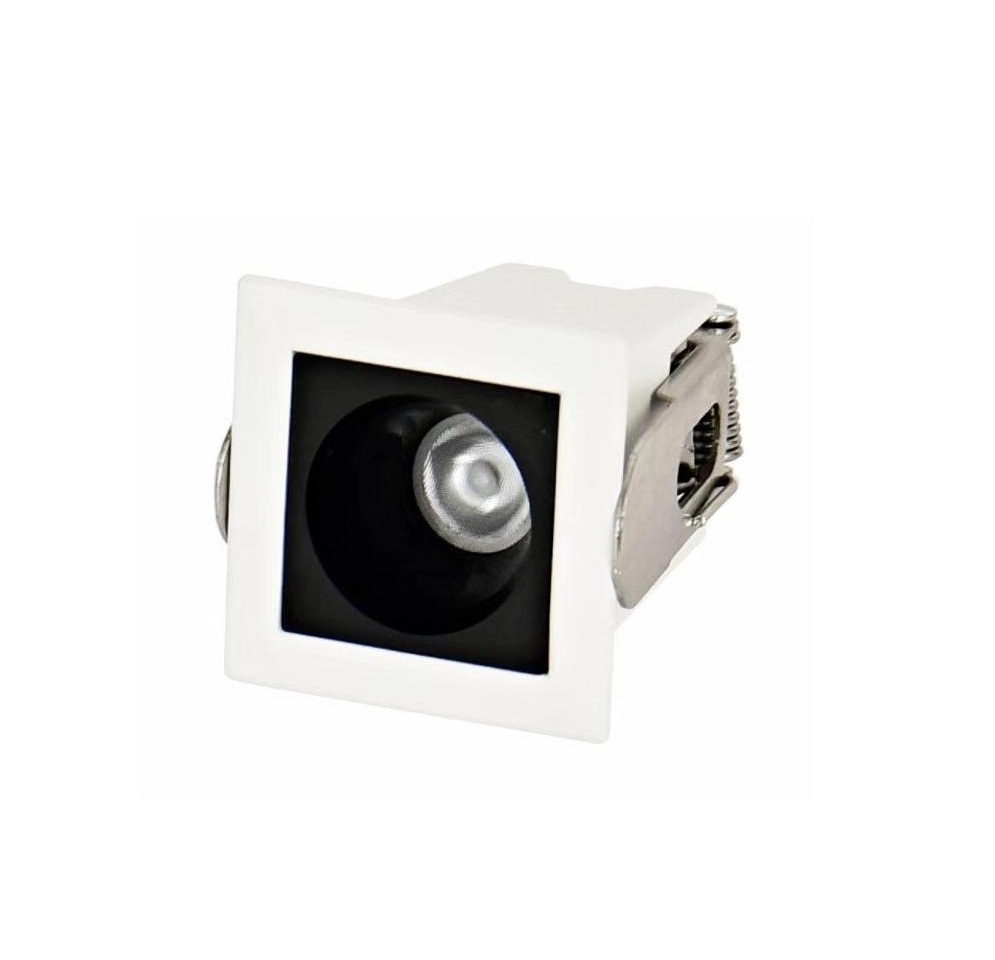

Part No.	EZENTIAL01
Installation	Recessed
Cut out size	37 x 37mm
Size	L45 x W45 x H50mm
Power	2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

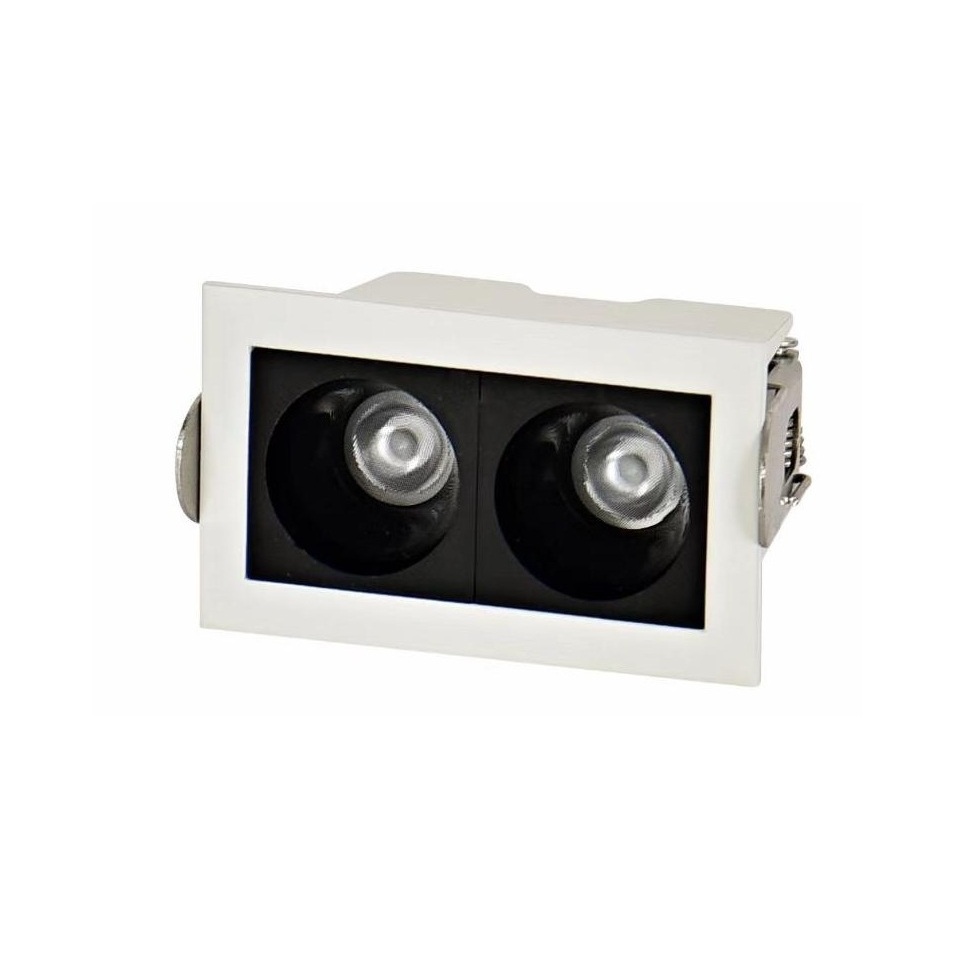

Part No.	EZENTIAL02
Installation	Recessed
Cut out size	68 x 37mm
Size	L75 x W45 x H50mm
Power	2*2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

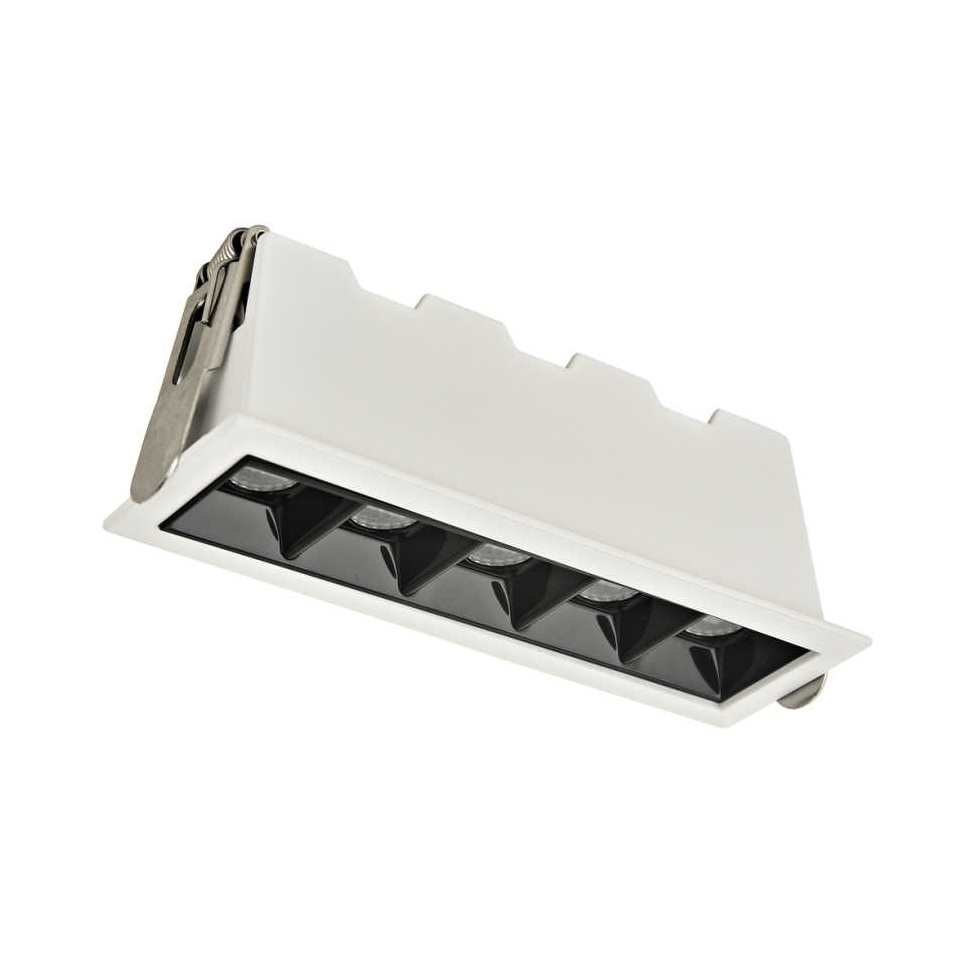

Part No.	EZENTIAL05
Installation	Recessed
Cut out size	140 x 37mm
Size	L147 x W45 x H50mm
Power	5*2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

Part No.	EZENTIAL10
Installation	Recessed
Cut out size	273 x 37mm
Size	L280 x W45 x H50mm
Power	10*2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

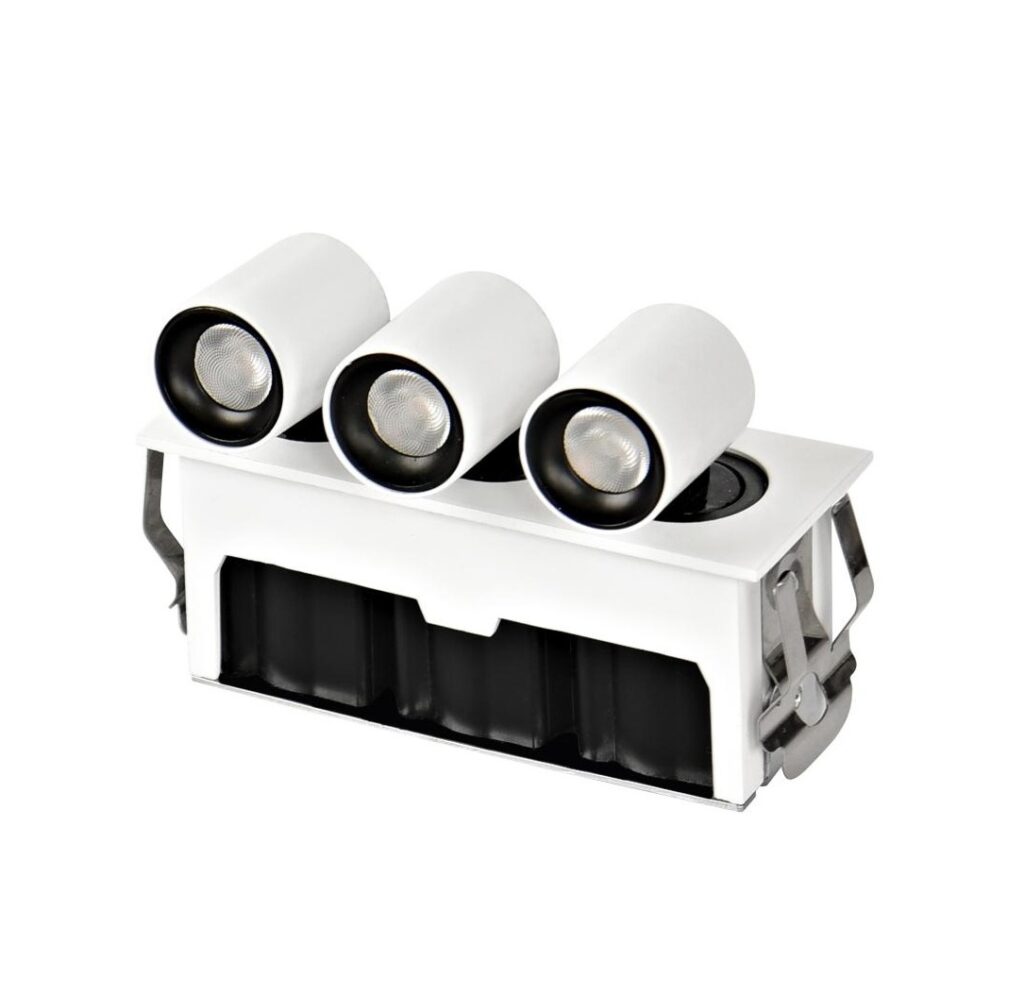

Part No.	EZENTIALS03
Installation	Recessed
Cut out size	108 x 40mm
Size	L118 x W50 x 60mm
Power	3*2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise

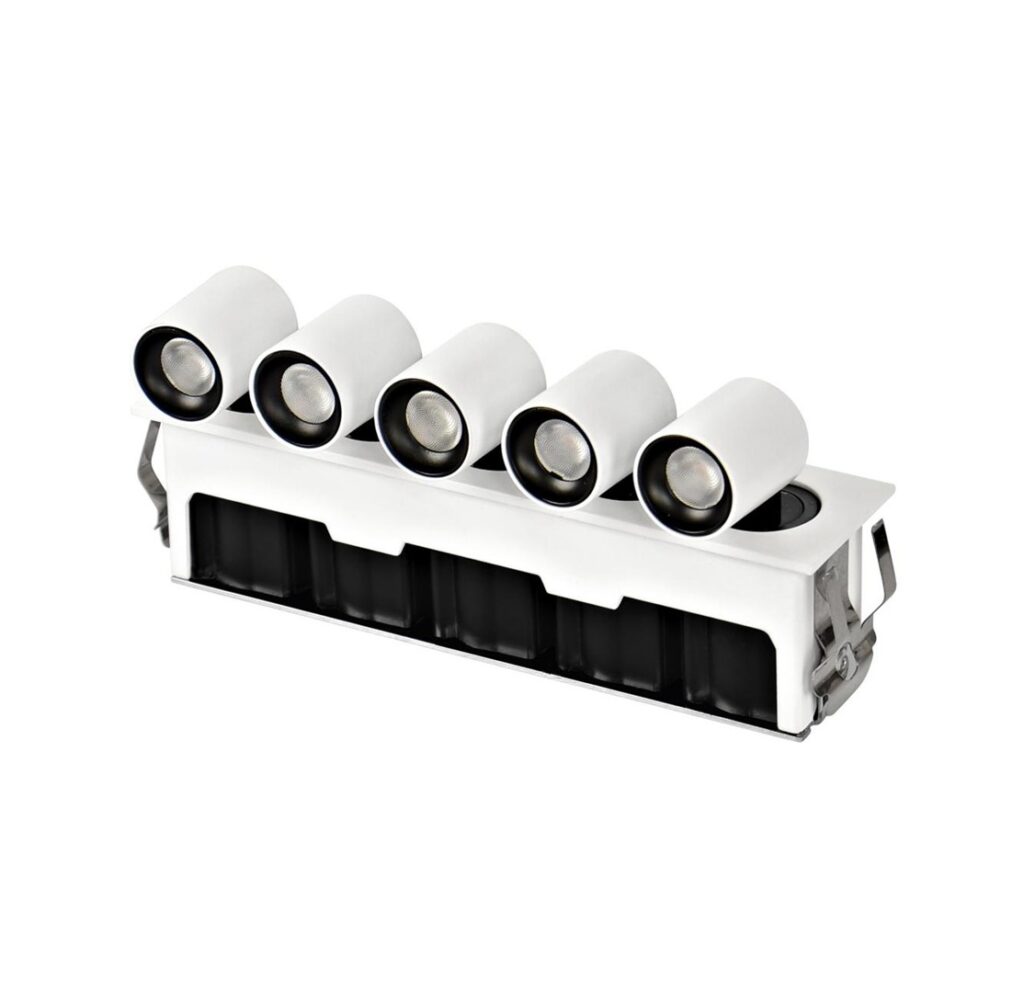

Part No.	EZENTIALS05
Installation	Recessed
Cut out size	215 x 40mm
Size	L225 x W50 x 60mm
Power	5*2W
CRI	92
COB	Bridgelux COB
Light source SDCM	＜3
Beam angle	15°/24°/36°
CCT	2700K/3000K/3500K/4000K
Reflector color	Silver chrome, black nichel, white, black
Color	White
Power supply	Eaglerise
